Micro Waterproof Motor 12MM Gear Motor Title:
Micro Waterproof motor 12MM 4.5V 5V 6V Electric Metal Brush DC Gear Motor N20 For Intelligent Robot
Micro Waterproof Motor 12MM Gear Motor Description:
-
Rated Voltage:DC1.2v-24v
-
Rated Voltage:3rpm-3000rpm
-
The motor speed is proportional to the motor voltage.
-
Rated Power:0.1W-5W
-
Gearbox Size:12*9mm gearbox
-
Rated torque :0.05kgf.cm-2kgg.cm
-
The torque of the motor is nronortional to the speed of the motor
-
Match Motor Type : FF-N10,FF-N20, FF-N30,micro dc motor
-
Reduction ratio: 1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000 or Customized
-
The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized
-
Shaft diameter :φ3mm ,φ4mm or others
-
SHAFT TYPES:
-
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type :DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
-
Accessories:Wires, Gears ,Connectors, Gearbox, Encoder, Brake, Cool Fan, other requirements can be configured
-
Bearing Type:Ball bearing/Oil bearing
-
Applications:Robot,Locks ,Locker lock,Toys car,
-
Meet EU environmental standards: low energy consumption, low noise
-
Quality: With professional equipment, improve the testing process, quality control system
-
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
-
We can provide sample for testing
Micro Waterproof Motor 12MM Gear Motor Key attributes:
Rated Speed(RPM)
5rpm-3000rpm
Continuous Current(A)
10mA-500mA
Place of Origin
Guangdong, China
Use
Home Appliance, robots,door lock,camera,medcial device
Type
N20 Mini Micro Metal Gear Motor
Gear Ratio
1:10-1:1000 ratio
Direction of Rotation
cw or ccw
Protect Feature
Exposed Gearbox
Product Name
Micro Waterproof motor 12MM
Certificate
CE,Rohs,EU,ISO,16949
Life time
100hours-1000hours
Shaft
shaft Dia: 3mm
Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Bearing type
Ball bearing / Oil bearing

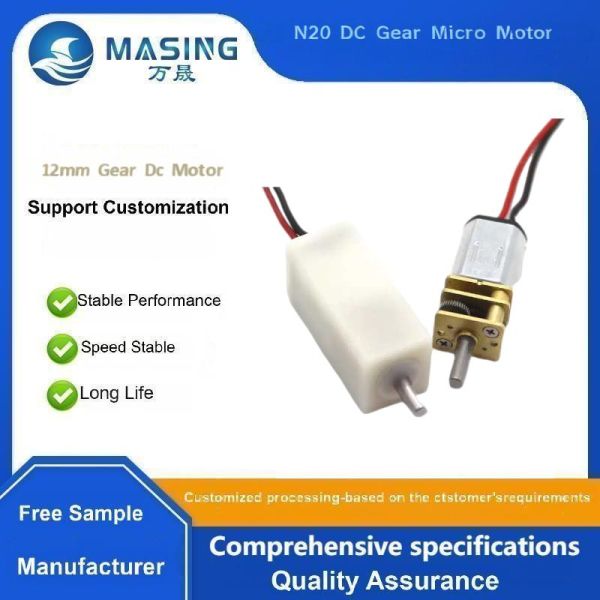

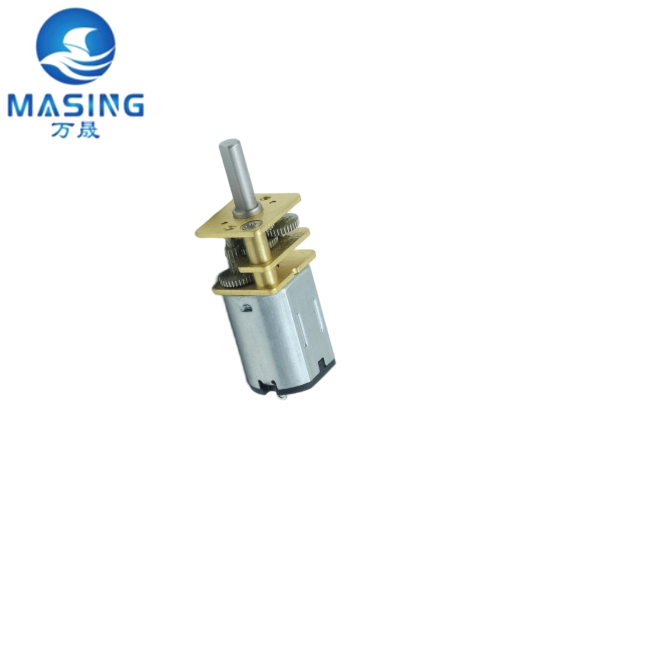

Micro Waterproof Motor 12MM Gear Motor Product Photo:
Micro Waterproof Motor 12MM Gear Motor Product Spec:
N20 DC Spur Gear Motor Typical Applications:
Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
Packaging and delivery:
Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
12X10X24mm
Single gross weight:
0.01kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:What's the price? A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2: Can you send some samples before the order?
A2:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q3: How to select a suitable motor?
A3: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q4:Can you make our logo on the products?
A4:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.
Q5:Do you have a customized service for your standard motors?
A5:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
